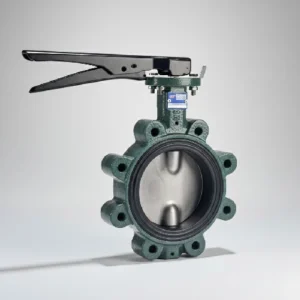

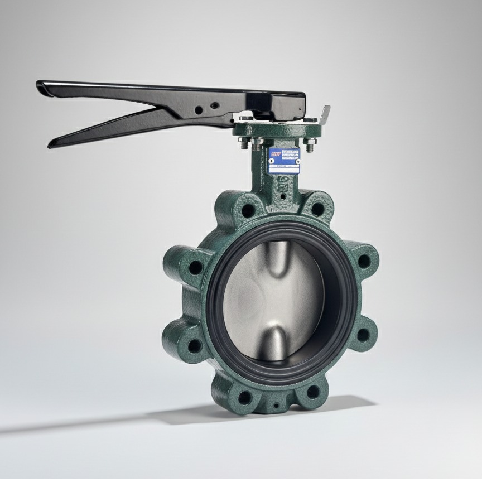

Butterfly Valves
Butterfly Valves
Butterfly valves are compact and lightweight valves designed for efficient isolation and flow control in large diameter pipeline systems. Their design allows for easy installation and minimal space requirement.
Typical Applications
- Marine Application(ABS TYPE APPROVAL CERTIFICATE)
- Oil and Gas
- Water supply pipelines
- HVAC systems
- Industrial distribution networks
- Fire protection systems
Technical Specifications
- Size Range: DN 40 – DN 600 / NPS 1-1/2” – 24”
- Pressure Classes: 5k | 10k | 16k | PN6 | PN10 | PN16 |PN25 | #150
- Design Standards: API 609, EN 593, ISO 5752, JIS STANDARD
- Types: Wafer, Lug, Semi Lug, Double Flanged, Triple Offset
Materials of Construction (MOC)
BODY: Cast Iron, Ductile Iron, Cast steel. CF8, CF8M, CF3M
DISC: CF8, CF8M, CF3M, Teflon, Aluminium Bronze
SEAT: NBR | EPDM | Viton | Silicon | Neoprene
